Tornello Speed Gate

Application

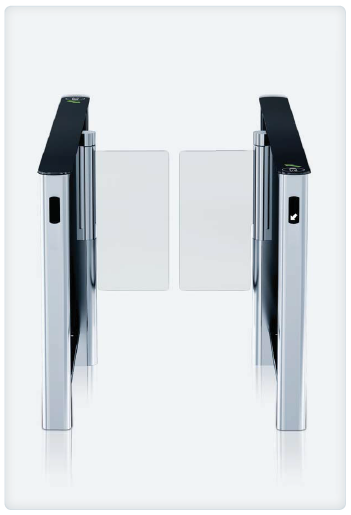

The ST-01 speed gate with swing panels is designed in a modern and elegant style and provides an ideal contactless solution for access control at sites with high aesthetic and comfort requirements. The ST-01 is perfectly suitable for a wide range of indoor applications and can be installed in offices, banks, administrative buildings, exhibition and business centres.

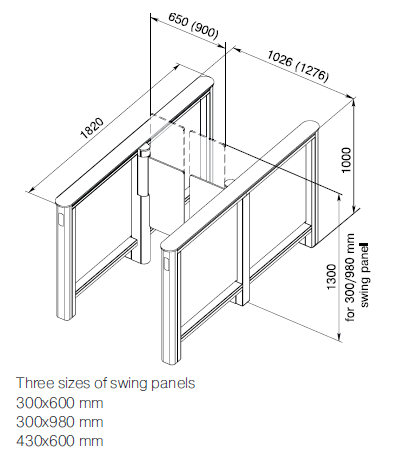

The ST-01 speed gate is available with three different sizes of swing panels. The system of infrared sensors ensures the security of passage at high throughput. In emergency situations after receiving a signal from an ACS or an emergency button the swing panels are opened in a predetermined direction, in case of a power loss the swing panels are unlocked

Delivery set

  •  two gate posts with built-in electronics
  •  two swing panels
  •  remote control panel

Design
The ST-01 is equipped with two LED directional indicators on the front panels and the LED indication of the current mode (open/closed) on the top cover.
The gate housing has specially designed places for concealed mounting of proximity card readers

  • Gate posts – stainless steel
  • Filler panel (for gate posts) – 8 mm tempered glass
  • Top covers – 10 mm tempered glass
  • Swing panels – 10 mm tempered glass
